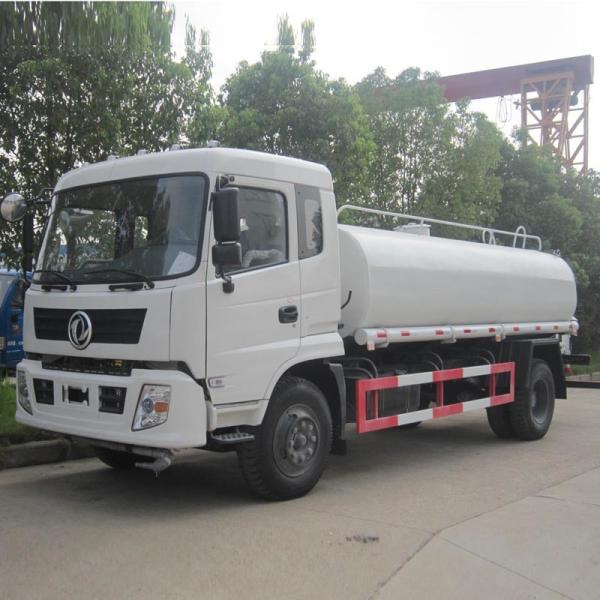

Water Tank Truck DONGFENG 10cbm 40000L Water Tank Truck 170hp
Vehicle parameters:
| Overall dimensions | 7450X2480X2985mm |
| Tank dimensions | 4060×2100×1360mm |
| Curb weight | 5400kg |
| Tank volume | 10000L |
Chassis parameters:
| Chassis brand | DONGFENG | |
| Overall dimensions | 6975X2462X2690mm | |
| Front/rear wheel track | 1900/1800mm | |
| Approach/departure angle | 25/18° | |
| Wheel base | 3950mm | |
| Front/rear suspension | 1205/1820mm | |
| Maximum speed | 90km/h | |
| Chassis Manufacturer | Dongfeng Motor Company | |
| Cab | Configuration | A row and a half deluxe cab(with sleeping berth),allowable 3 passengers |
| Color | Blue,other color is optional | |
| Engine | Model | B170 33 |
| Emission | Euro 3 | |
| Type | 6 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling,diesel engine | |
| Rated power | 170hp,rated power speed 2500rpm | |
| Displacement | 5900ml | |
| Max.torque | 560N.m | |
| Bore x stroke | 102x120mm | |
| Manufacturer | Dongfeng Cummins Engine Co., Ltd. | |
| Tire | Size | 9.00-20 nylon tire |
| Number | 6+1 nos | |
| Frame | (250×80×7)mm,parts are double layers. | |
| Fuel tank | 160L,steel | |
| Front axle | 3.6T | |
| Rear axle | 9.0T | |
| Drive form | 4X2 | |
| Rated voltage | 24V,DC | |
| Transmissions | Gearbox DF6S, 6 speed forward 1 reverse. | |
| Steering device | Power assisted steering | |
| Steering wheel | Left hand drive | |
| Selective configuration | Air Conditioner,steel wire tire,new driver’s cab | |
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | ||
Water tank structure parameters:
| Tank dimensions | 4060×2100×1360mm | Tank volume | 10000L | |
| Tank material | Carbon steel | Tank thickness | 4/5mm | |
| Nozzle sprinkling width | ≥14m | Range of water cannon | ≥28m | |
| Suction height | ≥7m | Color and Logo | Optional | |
| Standard configuration | Chassis, sub frame, carbon steel water tank, manhole, water pump, front/side/rear spray nozzle,rear working platform,water cannon,fire valve, water valve, filter gauze,water hose, climbing ladder. | |||
| Selective configuration | Stainless steel/aluminum alloy water tank,insulation layer for water tank,stainless steel water pump, fire pump, fire gun,pesticide plate, cabin gas control operated, Honda pumps, lights, crane, hanging basket, rear spraying device, barrel pesticide spraying device, gasoline pesticide machine, diesel pesticide machine, LED arrow lights | |||
| Extended model | water transporting truck, thermal insulation water transporting truck, drinking water tank truck, liquid food truck, fire water tank truck, pesticide spraying truck,and etc. | |||
|
|
